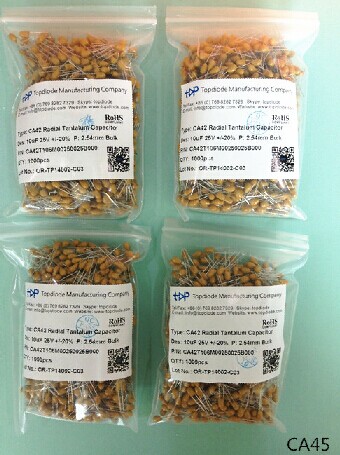

CA42 dipped tantalum capacitors  (alternatives for AVX TAP series)
10uF 10V +/-20% 2.54mm
10uF 16V +/-20% 2.54mm
1uF 35V +/-20% 2.54mm
0.68uF 35V +/-20% 2.54mm
15uF 16V +/-20% 2.54mm
22uF 16V +/-20% 2.54mm
10uF 25V +/-20% 2.54mm
47uF 16V +/-20% 2.54mm
100uF 10V +/-20% 2.54mm
CA 45 chip tantalum capacitors  (alternatives for AVX TAJ, Kemet T491, Vishay 293D series)
10uF 10V A case +/-10%
10uF 16V A case +/-10%
1uF 35V A case +/-10%
15uF 16V B case +/-10%
22uF 16V B case +/-10%
10uF 25V B case +/-10%
10uF 25V B case +/-10%
47uF 16V C case +/-10%
100uF 10V C case +/-10%
220uF 10V C case +/-10%

Email: info@topdiode.com  MSN: topdiode@gmail.com   Skype: topdiode  Website:www.topdiode.com

Size (Package) Code Cross Reference .pdf

Email: info@topdiode.com  MSN: topdiode@gmail.com   Skype: topdiode  Website:www.topdiode.com

Topdiode provides TVS (Transient Voltage Suppression) diodes that safeguard circuits against damage or latch-up caused by electrostatic discharge (ESD). Our devices feature low clamping voltage, low capacitance, and low leakage current.
Main features:
1. Ultra Low Capacitance
2. Low Leakage Current and Clamping Voltage
3. Low Operating Voltage
4. ROHS Compliant
Main applications:
1. High Definition Multi-Media Interface (HDMI)
2. Digital Visual Interface (DVI)
3. DisplayPortTM Interface & MDDI Ports
4. PCI Express & eSATA Interfaces
5. USB 2.0 / 3.0
6. Networking Equipment & Set Top Box
7. Notebook Computers
As for the detailed electrical characteristics, please refer to our website: www.topdiode.com

 Transient Voltage Suppression Diode (TVS   Diode)

Email: info@topdiode.com  MSN: topdiode@gmail.com   Skype: topdiode  Website:www.topdiode.com

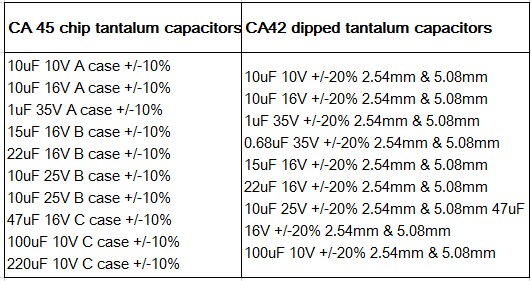

Topdiode tantalum capacitors factory keep some regular stocks for below capacitors, do you have interest?
 ISO 9001 & ISO 14001 manufacturer, specialized on tantalum capacitors and discrete components


Email: info@topdiode.com  MSN: topdiode@gmail.com   Skype: topdiode  Website:www.topdiode.com

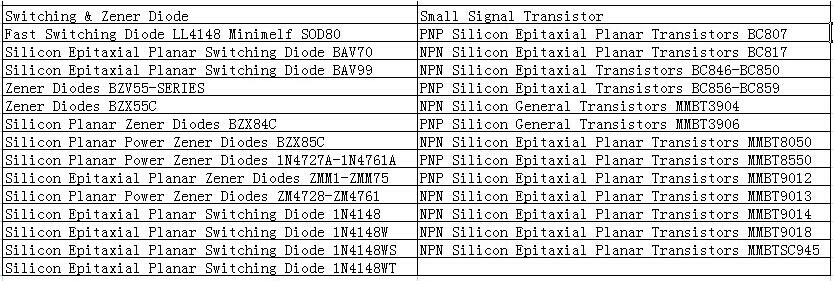

   Topdiode  include: M7 (SMD4001-4007), S1A -S1M, RS1A - RS1M, GS1A - GS1M, LL4148, FR101-FR107, FR151-FR157, FR201-FR207, 1N4933-1N4937, 6A05-6A10, RL201-RL207, 1N5400-1N5408, 1A1-1A7, 6A05-6A10, UF4001-UF4007, UF5400-UF5408, SM4001- SM4007, 1N4001S-1N4007S, 1N4001-1N4007, 1N5391-1N5399, 1N5817-1N5819, 1N5820-1N5822, SS32 - SS320, SS12 - SS110, SM5817 -SM5819, 1N4148, 1N4148W, 1N4148WS, 1N4148WT, BZV55-SERIES, BZX55C, BZX84C, BZX85C, 1N4727A -1N4761A, ZMM1-ZMM75, ZM4728 -ZM4761.

 Email: info@topdiode.com      MSN: topdiode@gmail.com    Skype: topdiode   Website: www.topdiode.com

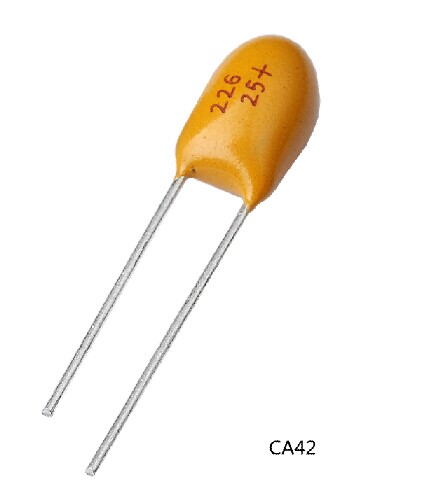

CA42
CA42 Radial Tantalum Capacitor is a professional grade device manufactured with a flame retardant coating and featuring low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +125°C (see page 2 for voltage derating above 85°C) and is available bulk and Ammo taped for auto insertion. The 6 sizes with wide capacitance and working voltage ranges means the CA42 series can accommodate lots of applications. CA42 is a perfect replacement of AVX TAP series (please refer to Topdiode cross guide). CA42 is designed for industrial use. Military radial tantalum capacitor is available on request.

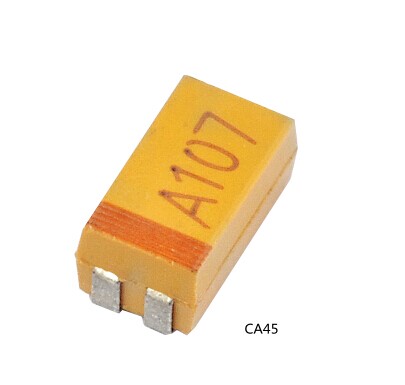

CA45
CA45 Chip Tantalum Capacitor is a general purpose SMT chip tantalum series. CA45 can replace Kemet T491, AVX TAJ, and Vishay 293D Series.
